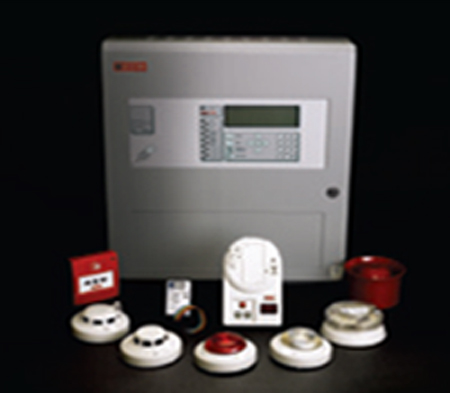

| Conventional Fire Alarm System |
|
|
|
| Conventional Detectors operate over a wide voltage range, enabling connection to Fire and Security systems, and thus minimising the variety of detectors required to fulfil the most demanding applications. The extensive range also features application-specific products that support specialised areas of detection such as Intrinsically Safe (I.S.) and Marine applications. |
| |
|
|
|
| Features |
 |
Extensive range providing flexible solutions |
|
Products designed for fire and security applications |
|
Approved to European standards (EN54) |
|
Rapid, reliable installation |
|
Environment Friendly |
|
|
|
| |
| Optimum Detection |
Foremost in this range is the high performance Photoelectric smoke detector which exceeds all requirements of EN54 standards, including exceeding the performance of an ionisation smoke detector. This performance, unrivaled by any other single technology detector, is matched only by competitors’ multi-criteria detectors.
These benefits remove the End-of-Life costs associated with Ionisation smoke detection and protect the environment from radioactive element disposal. |
| |
| Central Control Panels |
| Conventional Panels are the core of the fire alarm system. The range comprises of 2, 4 and 8 zone Panels. Each zone can support approximately 20 devices. The panels are fully compatible with the Ceasefire range of conventional detectors. In case of an alarm, the Panel displays the zone that is affected. |
| |
| |
 |
|
| 2 Zone Conventional Panel |
| The CF-HFP CP range of conventional panels offer the same reliability, durability and flexibility already afforded by the CF-HFP FIREline range of control panels. 100% compatible with the complete CDX conventional range of products the CF-HFP CP panels offer the installer complete flexibility and total peace of mind. |
|
|
| |
 |
|
| 4 Zone Conventional Panel |
| The CF-HFP CP range of conventional panels offer the same reliability, durability and flexibility already afforded by the CF-HFP FIREline range of control panels. 100% compatible with the complete CDX conventional range of products, the CF-HFP CP panels offer the installer complete flexibility and total peace of mind. |
|
|
| |
 |
|
| 8 Zone Conventional Panel |
| The CF-HFP CP range of conventional panels offer the same reliability, durability and flexibility already afforded by the CF-HFP FIREline range of control panels. 100% compatible with the complete CDX conventional range of products, the CF-HFP CP panels offer the installer complete flexibility and total peace of mind. |
|
|
| |
 |
|
| Conventional Fire Alarm Repeater Panel |
| The HFP CP-R range of conventional repeater panels offers the same reliability, durability and flexibility. 100% compatible with the complete HFP CP panel range and the conventional range of products, the HFP CP-R panels offer the installer complete flexibility and total peace of mind. Available in three models, a 2 zone - HFP CP-R2(24), a 4 zone - HFP CP-R4(24) and an 8 zone - HFP CP-R8(24). |
|
|
| |
 |
|
| A Conventional Photoelectric Smoke Detector |
| A Conventional Photoelectric Smoke Detector which is fully compatible with the majority of existing Conventional systems. A third terminal provides an integral remote indicator output. |
|
|
| |
 |
|
| A Conventional Rate of Rise Heat Detector |
| A Conventional Rate of Rise Heat Detector incorporating a 60°C fixed temperature element. The thermistor and linearising circuit provide an accurate linear response Heat Detector. A third terminal provides integral remote indicator output. |
|
|
| |
 |
|
| A Conventional Rate of Rise Heat Detector |
| A Conventional Rate of Rise Heat Detector incorporating a 90°C fixed temperature element. The thermistor and linearising circuit provide an accurate linear response Heat Detector. A third terminal provides integral remote indicator output. |
|
|
| |
 |
|
| A Conventional 60°C Fixed Temperature Heat Detector |
| A Conventional 60 C Fixed Temperature Heat Detector using a thermistor and linearising circuit to provide an accurate linear response Heat Detector. A third terminal provides integral remote indicator output. |
|
|
| |
 |
|
| A Conventional 90°C Fixed Temperature Heat Detector |
| A Conventional 90°C Fixed Temperature Heat Detector using a thermistor and linearising circuit to provide an accurate linear response. A third terminal provides integral remote indicator output. |
|
|
| |
 |
|
| IP67 Waterproof Conventional 60°C Fixed Temperature Heat Detector |
| An IP67 Waterproof Conventional 60°C Fixed Temperature Heat Detector with minimal standby current and high reliability. Particularly suited to environments which are exposed to high levels of condensation or are hosed down. |
|
|
| |
 |
|
| A Conventional Flame Detector |
| A Conventional Flame Detector which senses the ultraviolet radiation emitted from fire. Particularly suited to installations where flame rather than smoke initially develops due to the nature of the materials such as film, video and computer tapes. |
|
|
| |
 |
|
| A Conventional Infra-Red Flame Detector |
| A Conventional Infra-Red Flame Detector designed to respond to low-frequency (1 to 15Hz) flickering IR radiation emitted from flames during combustion, the unit can discriminate between flames and spurious sources of radiation such as sunlight. I.S. and explosion-proof versions are also available. |
|
|
| |
 |
|
| A Conventional Beam Smoke Detector |
| A Conventional Infra-Red Flame Detector designed to respond to low-frequency (1 to 15Hz) flickering IR radiation emitted from flames during combustion, the unit can discriminate between flames and spurious sources of radiation such as sunlight. I.S. and explosion-proof versions are also available. |
|
|
| |
 |
|
| A Conventional Reflective Beam Smoke Detector |
| A Conventional Reflective Beam Smoke Detector consisting of an emitter / receiver unit and reflector 2 plate that works over a distance of 5 - 30m, providing a maximum coverage of 450m . |
|
|
| |
 |
|
| A Conventional Detector Mounting Base |
| A Conventional Detector Mounting Base associated with the CDX Range of Detectors and Beacons and is fully compatible with the majority of existing conventional fire alarm control panels. |
|
|
| |
 |
|
| A Conventional Detector Mounting Base |
| A Conventional Detector Mounting Base for 2-Wire systems where detectors and sounders are on same zone cables*. |
| *Please ensure Control Panel compatibility |
|
|
| |
 |
|
| A Conventional Latching Relay Detector Mounting Base |
| A Conventional Latching Relay Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm and security control panels. |
|
|
| |
 |
|
| A Conventional Non-Latching Relay Detector Mounting Base |
| A Conventional Non-Latching Relay Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm and security control panels. |
|
|
| |
 |
|
| A Conventional Latching Schottky Diode Relay Detector Mounting Base |
| A Conventional Latching Schottky Diode Relay Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm panels. |
|
|
| |
 |
|
| A Conventional Detector Mounting Base |
| A Conventional Detector Mounting Base with in-line Schottky Diode, associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm panels. |
|
|
| |
 |
|
| An Electronic Conventional Sounder |
| An Electronic Conventional Sounder which, with the choice of two types of back box, can be used externally as well as internally. |
|
|
| |
 |
|
| A Conventional Beacon |
| A Conventional Beacon for use on 24V Sounder Circuits. The unit is fitted with a Fresnel Lens and high-intensity LEDs, a design which produces a highly visible flash. The casing exactly matches the CDX Detector Range in shape and colour, providing seamless integrations. |
|
|
| |
 |
|
| Strobe Light |
| The SL-401 is an ultra-low current strobe light combining excellent efficiency with high light output. Weatherproofed with a neoprene gasket, the SL-401 is supplied with an anti-tamper locking device to deter unauthorised removal of the lens. |
|
|
| |
 |
|
| A Conventional Manual Call Point |
| A Conventional Manual Call Point based upon the industry standard KAC world series housing. The unit can support either a ‘Frangible Glass’ element or a ‘Non-Frangible Plastic’ element. |
|
|
| |
 |
|
| An IP67 Conventional Weatherproof Call Point |
| An IP67 Conventional Weatherproof Call Point which can be used externally. |
|
|
| |
 |
|
| A Single Pipe Air Sampling Detector |
| A Single Pipe Air Sampling Detector designed to provide very high sensitivity smoke detection. The unit will automatically set up for easy installation and is also designed to fit into a docking station which accepts all sampling pipes and cables, leaving the detector to be fitted during the final commissioning phase. |
|
|
| |
 |
|
| A Two Pipe Air Sampling Detector |
| A Two Pipe Air Sampling Detector designed to provide very high sensitivity smoke detection. The unit will automatically set up for easy installation and is also designed to fit into a docking station which accepts all sampling pipes and cables, leaving the detector to be fitted during the final commissioning phase. |
|
|
| |
 |
|
| High Sensitivity Air Sampling Smoke Detector |
| Model FIRElink-400 is designed to provide very high sensitivity smoke detection using an aspirating technique. A unique sensing technology ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex set-up. The detector is available in three formats, the standard detector (FIRElink-400), the standard detector plus Command Module (FIRElink-400CM) and a standalone Command Module (FIRElink-CM). The Command Module variants provide a single location display, control and interfacing option for systems of up to 127 detectors and allow global programming of all other detector functions simultaneously. |
|
|
| |
 |
|
| High Sensitivity Air Sampling Smoke Detector with Command Module |
| Model FIRElink-400CM is designed to provide very high sensitivity smoke detection using an aspirating technique. A unique sensing technology ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex set-up. With the integrated Command Module this unit also provides a single location display, control and interfacing option for systems of up to 127 detectors and allow global programming of all detector functions simultaneously. |
|
|
| |
 |
|
| High Sensitivity Air Sampling Smoke Detector Command Module |
| Model FIRElink-CM is a standalone Command Module designed to provide a single location display, control and interfacing option for systems of up to 127 other FIRElink detectors. Also allows global programming of all detector functions simultaneously. |
|
|
| |
