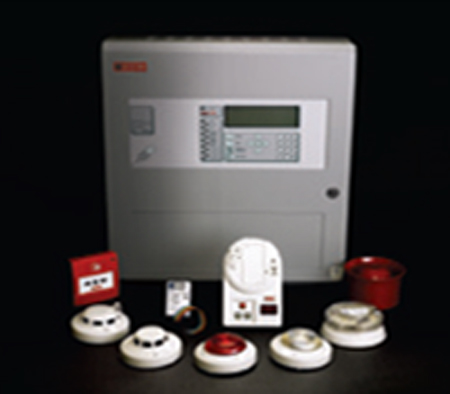

Addressable Fire Alarm System

Features
Alarm Reduction Management (ARM)

Advanced Digital ESP Communication

Extensive range providing flexible solutions
Products approved to European standards (EN54)



1 Loop Panel
The CF-HFP FIREline range is the heart of Ceasefire’s Fire Alarm Control Panel system. Operating under Ceasefire’s world-proven ESP Protocol, these panels offer the same reliability, durability and flexiblity that’s already afforded by the Ceasefire’s range of detection products. 100% compatible with the complete ESP analogue addressable range of products, the FIREline panels offer the installer complete flexibility and total peace of mind.


1 to 2 Loop Panel
The CF-HFP FIREline range is the heart of Ceasefire’s Fire Alarm Control Panel system. Operating under Ceasefire’s world-proven ESP Protocol, these panels offer the same reliability, durability and flexiblity that’s already afforded by the Ceasefire’s range of detection products. 100% compatible with the complete ESP analogue addressable range of products, the FIREline panels offer the installer complete flexibility and total peace of mind.


1 to 4 Loop Panel
The CF-HFP FIREline range is the heart of Ceasefire’s Fire Alarm Control Panel system. Operating under Ceasefire’s world-proven ESP Protocol, these panels offer the same reliability, durability and flexiblity that’s already afforded by the Ceasefire’s range of detection products. 100% compatible with the complete ESP analogue addressable range of products, the FIREline panels offer the installer complete flexibility and total peace of mind.


1 to 8 Loop Panel
The CF-HFP FIREline range is the heart of Ceasefire’s Fire Alarm Control Panel system. Operating under Ceasefire’s world-proven ESP Protocol, these panels offer the same reliability, durability and flexiblity that’s already afforded by the Ceasefire’s range of detection products. 100% compatible with the complete ESP analogue addressable range of products, the FIREline panels offer the installer complete flexibility and total peace of mind.


Analogue Fire Alarm Active Repeater Panel
The CF-HFP FIREline range is the heart of Ceasefire’s Analogue Fire Alarm system. The range comprises of the CF-HFP FIREline-1 (a one loop panel), the CF -HFP FIREline-2 (a one to two loop panel), the CF-HFP FIREline-4 (a one to four loop panel), the CF-HFP FIREline-8 (a one to eight loop panel) and the CF-HFP FIREline-AR (an active repeater panel). Operating under Ceasefire’s worldproven ESP Protocol, these panels offer the same reliability, durability and flexibility that’s already afforded by the Ceasefire’s range of peripherals. 100% compatible with the complete ESP analogue addressable range of products, the FIREline panels offer the installer complete flexibility and total peace of mind.


Photoelectric Smoke Sensor
A Photoelectric Smoke Sensor incorporating Ceasefire’s unique High Performance Chamber which allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms.


Ionisaiton Smoke Sensor
Model AIE-E is an Ionisation Smoke Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol. A single radioactive source within the AIE-E ionises two chambers which allows a small DC current to flow between the electrodes in each chamber. Smoke can freely enter the outer chamber whilst the inner chamber is virtually seated. Smoke entering the outer chamber causes a reduction in the DC current, the imbalance between the two currents is proportional to smoke density which is filtered and transmitted as the analogue value. The threshold on the AIE-E can be adjusted to compensate for contamination by utilising the built-in test facility.


A Multi-Sensor
A Multi-Sensor incorporating a thermal element and a High Performance photoelectric smoke chamber. Has three modes controlled from the Control Panel, allowing either the optical or thermal element or both to be active in making the fire decision.


Multi-Heat Sensor
A Multi-Heat Sensor incorporating a variable Fixed Temperature heat element and a Rate Of Rise heat element, both controlled from the Control Panel, allowing either thermal element or both elements simultaneously to be active in making the fire decision.


An Ip67 Rated Waterproof Multi-Heat Sensor
An IP67 Rated Waterproof Multi-Heat Sensor which can be used externally and is supplied with its own fixing base which is used to fix the sensor. Flying leads from the sensor connect directly to the loop via waterproof connectors.


A Common Mounting Base
Model YBN-R/3 is a Common Mounting Base, which is fully compatible with Ceasefire’s ESP range of sensors. It is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote LED if required.


A Loop Isolator Base
A Loop Isolator Base which is fully compatible with Ceasefire’s ESP Range of Sensors, Beacons, Sounders and Indicators. The unit incorporates an amber LED to show when it is isolating a section of the loop.


An Addressable Loop-Powered Wall Sounder
An Addressable Loop-Powered Wall Sounder providing 8 volume levels and 51 tones with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit is designed to fit the following bases: YBO-r/3(RED), YBO-R/SCI(RED), YBO-R/3(WHITE) and YBO-R/SCI(WHITE).


An Addressable Loop-Powered Base Sounder
An Addressable Loop-Powered Base Sounder providing 13 volume levels and 5 tones with a maximum output of up to 98dB(A) (±2dB(A)) with low current consumption. The unit is designed to fit either the YBN-R/3 or the YBO-R/SCI* Bases.


An Addressable Loop-Powered Base Sounder Beacon
An Addressable Loop-Powered Base Sounder Beacon, providing 13 volume levels and 51 tones with a maximum output of up to 98dB(A) (±2dB(A)) with low current consumption. The unit is designed to fit either the YBN-R/3 or the YBO-R/SCI* Bases.


An Addressable Loop-Powered Beacon
An Addressable Loop-Powered Beacon, with high-intensity LEDs and a Fresnel lens design which produces a highly visible flash. The casing exactly matches the Ceasefire ESP Sensor range in shape and colour, providing seamless integration.


An Addressable Loop-Powered Remote Indicator
An Addressable Loop-Powered Remote Indicator, with high-intensity LEDs and a Fresnel lens design which produces a highly visible signal. The casing exactly matches the Ceasefire ESP Sensor range in shape and colour, providing seamless integration.


A Powered Output Module
A Powered Output Module designed to supply a nominal 24Vd.c. at various, user-selectable current levels from 2 to 32mA (in increments of 2mA). The unit is small enough to be added to other thirdparty devices thereby allowing a range of equipment to be added to the ESP loop. The unit also features two monitored inputs.


I.S. Dual Circuit Zone Controller
Model CHQ-Z(I.S.)/OEM is Dual Circuit Controller which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol and I.S. equipment. It is supplied as an OEM version (as illustrated) which can be fitted within an IP67 rated enclosure. Addressing is achieved via simple DIL switches: The device is designed to allow up to 40 devices (20 per zone).

Conventional I.S. CDX Range detectors (SLR-E-IS or DCD-1E-IS) in the hazardous area to be interfaced to Hochiki's ESP analogue addressable system within the safe area.*
*An appropriate barrier must be used.


A Dual Input Module
A Dual Input Module designed to interface to a variety of inputs such as door contacts, sprinkler flow / door switches and plant equipment. Also available as a DIN Rail mountable version, with or without an integral short-circuit isolator.


A Dual Relay Controller
A Dual Relay Controller designed to provide two general-purpose relay outputs, each output can be controlled independently and used to control dampers, plant and equipment shutdown. The monitored input can be used for local power supply fault monitoring or as a general-purpose input.


A Dual Sounder Controller
A Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring. The monitored input can be used for local power supply fault monitoring or as a general-purpose input.


A Dual Zone Module
A Dual Zone Module designed to allow up to 60 conventional detectors (30 per zone) or up to 6 SPC-ET or SRA-ETs (3 per zone) to be interfaced to Ceasefire’s ESP Analogue Addressable system. The unit also features Schottky and Zener line continuity options.


A Mains Relay Controller
A Mains Relay Controller providing a single mainsrated relay output for the control of such devices as dampers, extractors or plant and equipment shutdown. The monitored input can be used for local power supply fault monitoring or as a general-purpose input.


A Single Zone Monitor
A Single Zone Monitor designed to allow up to 6 conventional detectors or 1 SPC-ET/SRA-ET beam detectors to be interfaced to Ceasefire’s ESP Analogue Addressable system. Also available as a DIN Rail mountable version, with or without an integral short-circuit isolator.


A Manual Call Point
A Manual Call Point fully compatible with Ceasefire’s ESP Analogue Addressable Protocol and featuring Plug-in wiring terminals for easy installation.


An IP Weatherproof Manual Call Point
An IP67 Weatherproof Manual Call Point, fully compatible with Ceasefire’s ESP Analogue Addressable Protocol. Featuring plug-in wiring terminals for easy installation.
